Dicing Accessories suited

for your dicing process.

Hub Types

To cut silicon and other common semiconductor wafers to fit all Dicing Saws.

hub blades dicing

e-plated Nickel Blades

To cut silicon soft ceramic, PCBs and other plastic materials to fit 2″ and 4″ flanges.

Nickel blades for your dicing process for semiconductor materials.

Sintered Metal Blades

To cut hard materials and thick substrates to fit 2″ and 4″ flanges.

Sintered Metal Blades, Resinoid or Tungsten Carbide TCG Blades to cut different kind of materials.

Resinoid Blades

Self-sharpening, the ultimate solution for higher cut quality to fit 2″ and 4″ flanges.

Sintered Metal Blades, Resinoid or Tungsten Carbide TCG Blades to cut different kind of materials.

Tungsten Carbide TCG Blades

Saw blades for plastic tapes and substrates to fit 2″ and 4″ flanges.

Sintered Metal Blades, Resinoid or Tungsten Carbide TCG Blades to cut different kind of materials.

Special Blades

Special compositions and special shapes and peripheries fitting 2″ and 4″.

ADT blades dicing wafer

Standard Flanges

Suitable for almost all dicing saws with different outside diameters.

Flange suitable for almost all dicing saws with different outside diameters.flanges, dicing

Minitron Waterflanges

Water penetration deep into kerf. Optimized water flow for thick substrate.

Water penetration deep into kerf. Optimized water flow for thick substrate.

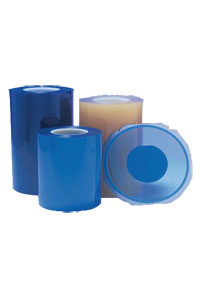

ULTRON pressure sensitive Tapes/Blue Tapes

The film is mostly based on PVC and silicone free. The dicing tapes are offered in different thicknesses, widths and different bond strengths.
All tapes are delivered by default on a 100m roll.

ULTRON pressure sensitive film is mostly based on PVC and silicone free. The Blue Tapes are free of silicone release agents.

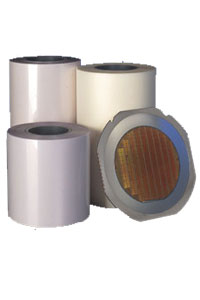

ULTRON UV sensitive Tapes

The dicing tapes are based on PVC, PO or PT plastics. Some UV-sensitive films are equipped with an additional antistatic layer.

All films are offered in different thicknesses, widths and bond strengths. By default, 100m rolls are delivered.

ULTRON UV sensitive dicing tapes are based on PVC, PO or PT plastics. Some UV-sensitive films are equipped with an additional antistatic layer.

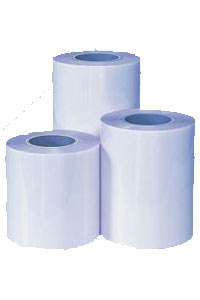

Temperature sensitive Tapes

The dicing tape is coated on one or both sides. At appropriate temperature, depending on the film properties, the film can be easily and without damage, separated from the cut substrate.

The film is available in different thicknesses, adhesions and separation temperatures (90 – 170 degrees).
It can be used for various substrates, e.g. glass, ceramics and also very thin substrates.

Do not hesitate to contact us, we will be pleased to help you.

The dicing tape is coated on one or both sides. At appropriate temperature, depending on the film properties, the film can be easily and without damage, separated from the cut substrate.

NIKKA

Hot-melt waxes for fixing substrates as an alternative to tapes, also water-soluble.
For dicing and back sanding applications, also in tape form.

NIKKA hot-melt waxes for fixing substrates as an alternative to tapes, also water-soluble. For dicing and back sanding applications, also in tape form.

Minitron Metal Wafer Frames

StSt frames to hold wafers/substrates during dicing and cleaning. All sizes and special shapes. Made in Europe, delivery from stock.

Metal frames to hold wafers/substrates during dicing and cleaning. All sizes and special shapes.

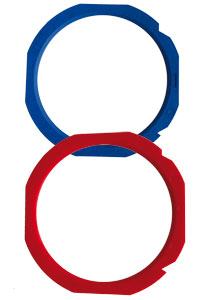

Minitron Plastic Wafer Frames

Low cost or high-rel. plastic materials, also conductive. Many sizes. Made in Europe, delivery from stock.

plastic frame, dicing wafer

Minitron Grip Rings/Dicing Rings

For all wafer sizes, production largely in Europe, delivery from stock.

Minitron Plastic Cassettes for Wafer Frames

Antistatic plastic. 25 positions locking combs to secure Wafer Frames. Made in Europe.

These Cassettes are of antistatic plastic material. 25 positions locking combs to secure Wafer Frames.

Minitron Metal Cassettes for Wafer Frames

Anodize aluminium. 25 positions, locking bar to secure Wafer Frames. On request also for Wafers without Frames.

This Cassette is an anodize aluminium with 25 positions, locking bar to secure Wafer Frames. On request also for Wafers without Frames.

Other Cassettes

  • For wafers without a frame
  • For Grip Rings
Cassette of anodize aluminium with 25 positions, locking bar to secure Wafer Frames. On request also for Wafers without Frames.

Possibilities for packaging

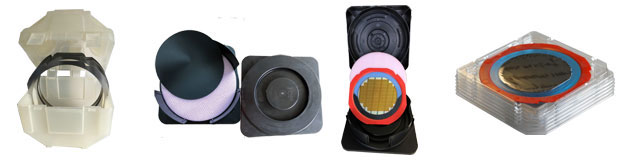

Trays for frames

Packaging trays for frames.

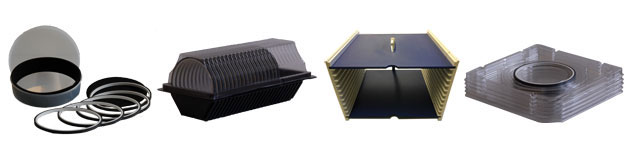

Trays for rings

Packaging trays for rings.

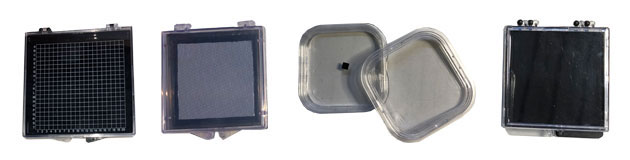

Membrane boxes for chips

Packaging membrane boxes for chips.

Genex Street Kleen

Dicing additive for reduced surface tension of water and optimal removal of debris in order to get better cut results.

Dicing additive for reduced surface tension of water

NIKKA Wafer Protection for laser applications

Prevents condensation of laser steam on wafer surface. Easy removal with hot water.

NIKKA Wafer Protection for laser applications

Additives for the sawing process

Improve the sawing process, higher blade life, reduced chipping, higher feed.

Improve the sawing process, higher blade life, reduced chiping, higher feed.
